SAM4S / MYDUS

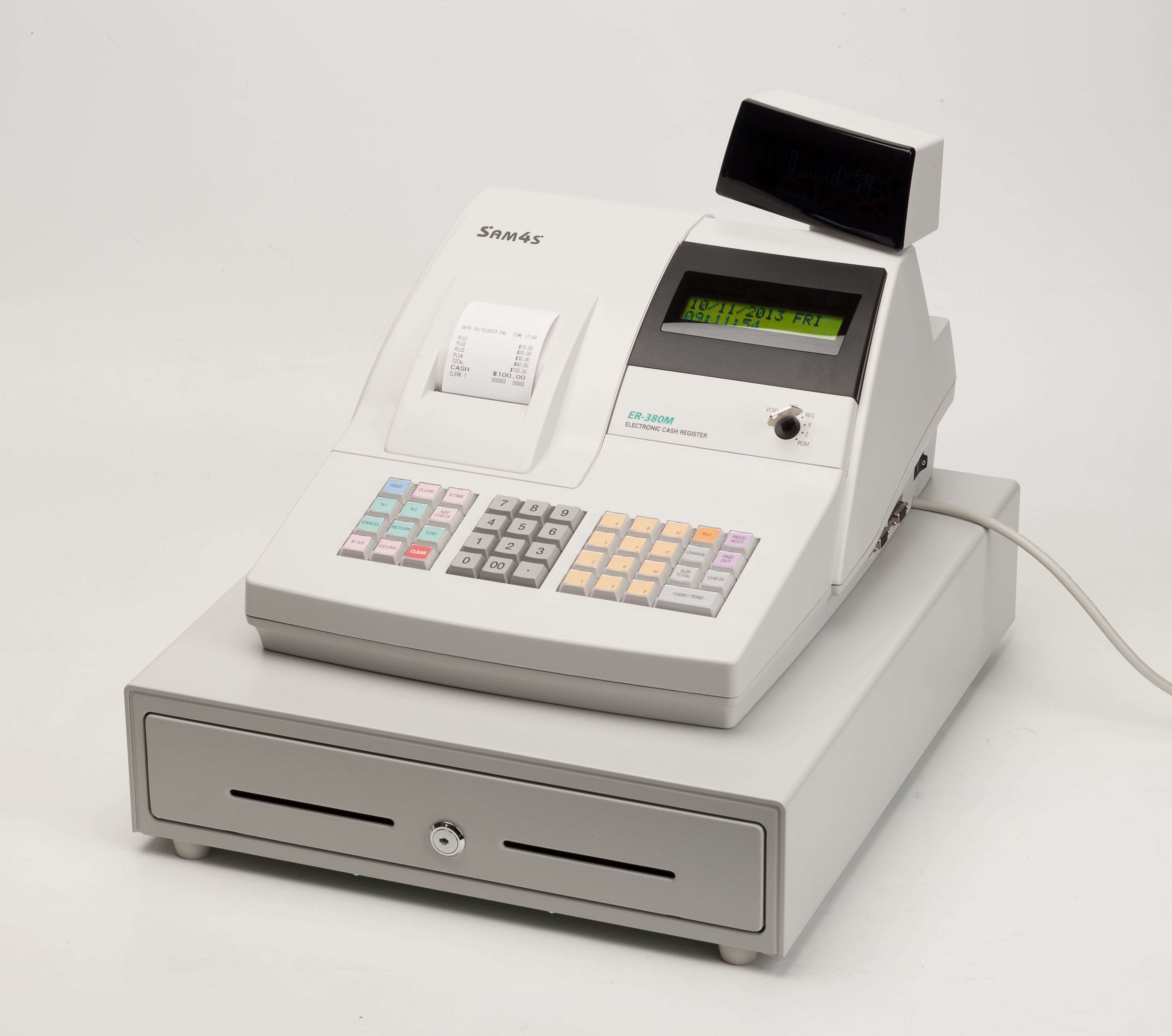

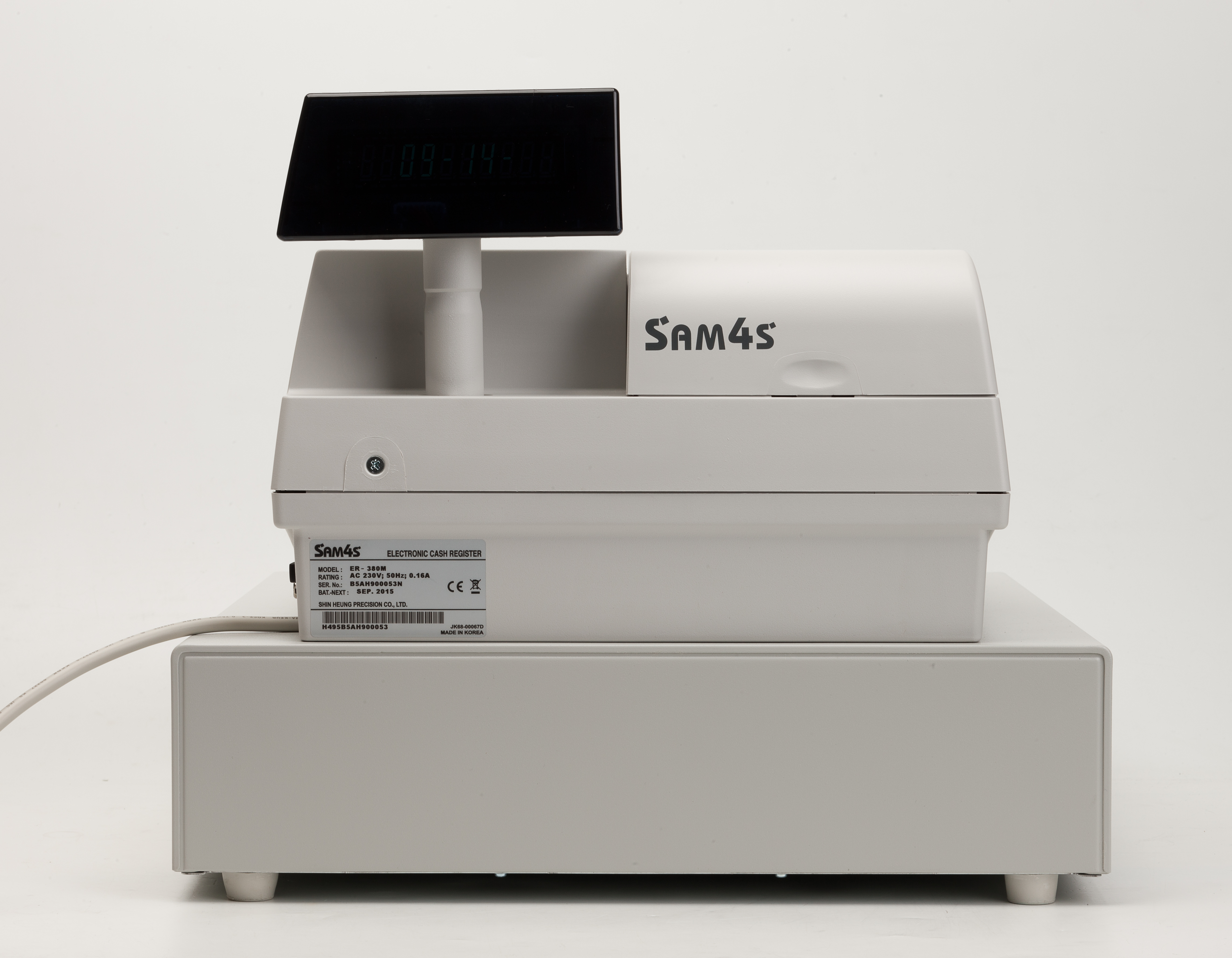

ER-380/380M
Quick, Quiet, & Economical Thermal ECR

ER-380/ER-380M is quiet and speedy, this model provides cost-effective solution for a wide range of retail and hospitality applications.

- Low cost solution
- High speed & Quiet thermal printer
- Designed for easy operating
- Capacity of 20Groups and Max 5,000 PLUs for easy item management
- Excellent s/w such as table management, gallonage, and Barcode Scanner, etc.

MODEL NAME		ER-380
Printer	Method	1st Thermal / 2nd Thermal(ER-380Ⅱ)
	Speed	13.3LPS
	width	57.5mm/ 28.0(ER-380Ⅱ)
Keyboard	Type	44 Raised
Display	Operator	10-digit VFD
Display	Customer	10-digit VFD
Memory	Ram	2Mbit(optional 6Mbit)
Memory	Rom	4Mbit
Interface	RS-232C	1Portx 1/ 2Ports(ER-380Ⅱ)

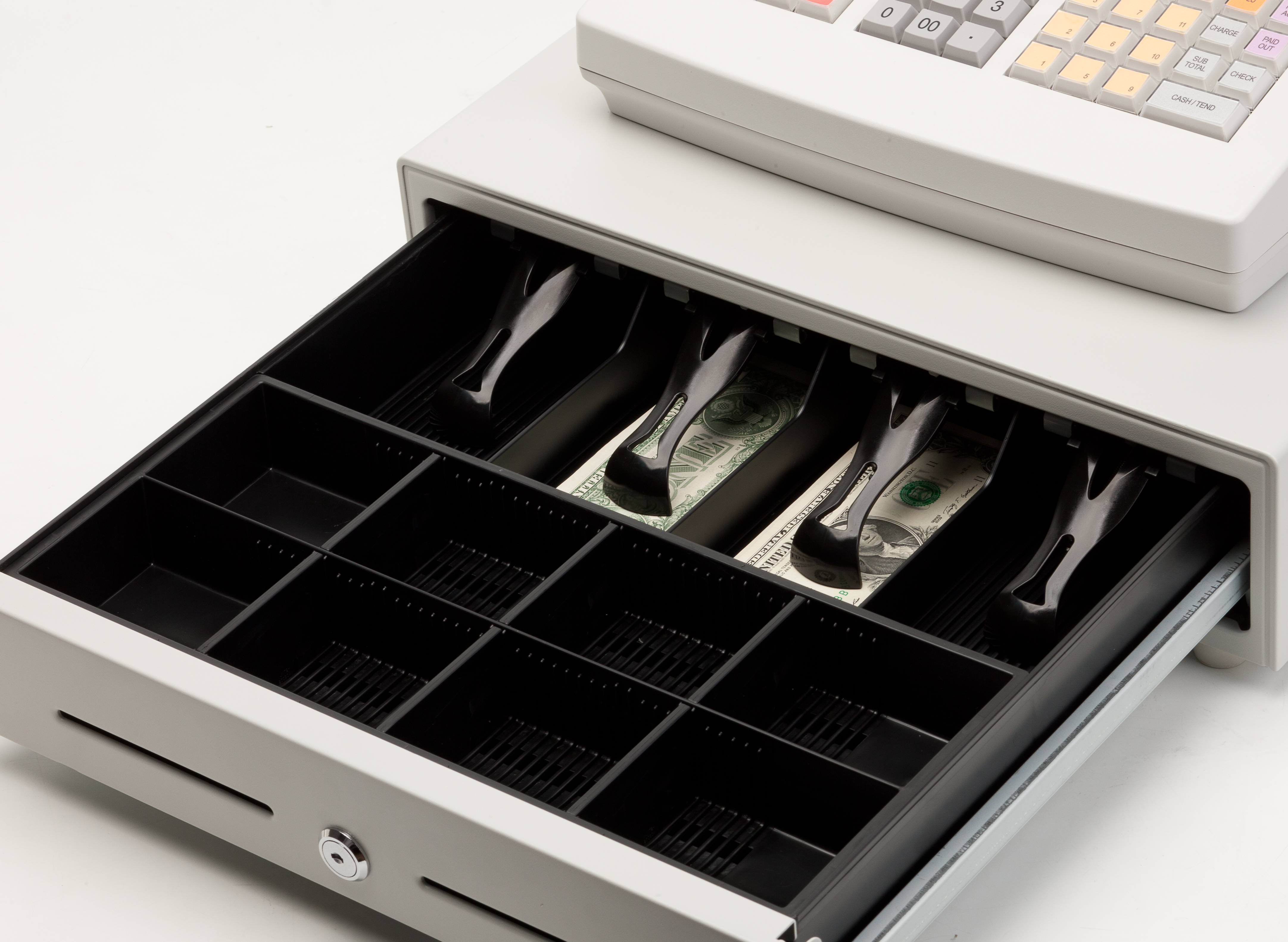

Drawer	Type	5B/5C, 4B/8C, 7B/8C
Dimension	(W x D x H mm)	400x450x260(with drawer)
Weight	kg	About 13
Department		12
PLU		500
Group		20
Electronic Journal		3000 Lines(Default)
Description		18 Char
Clerk		15
Buffer Receipt		Yes
Training Mode		Yes
Receipt Preamble / Postamble		6lines/6lines
KP Operating		Yes
Tendering		Cash, Check, Charge 8
Currency Conversion		4
Conversion Rate		7 Digits
Decimal Point		0~3 selectable
Graphic Logo Print		Yes(8 lines)
