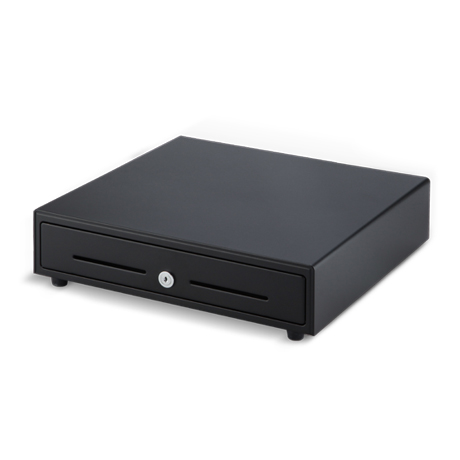

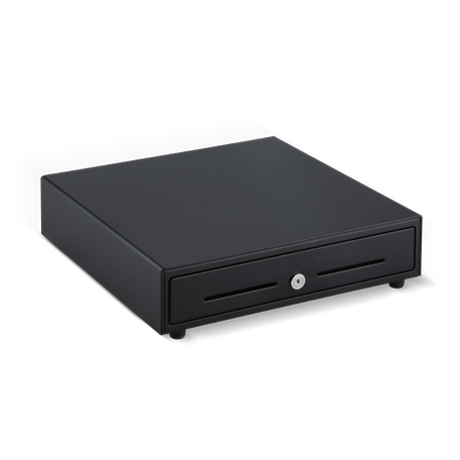

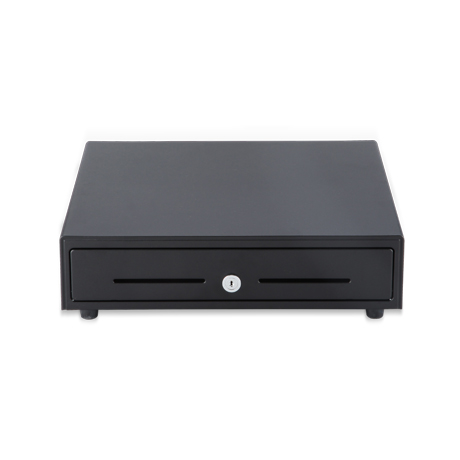

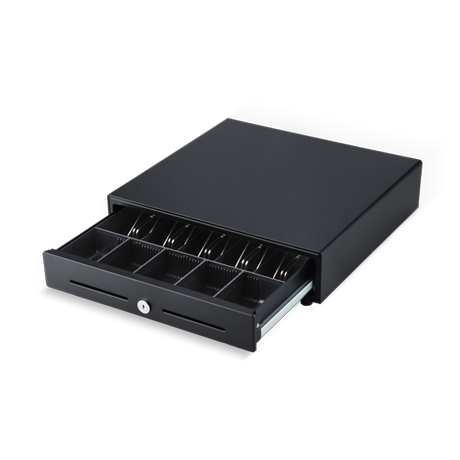

H-Drawer
-
Point of sale drawer for restaurant and supermarket
H-Drawer with sensible design and modern color is state of the art POS drawer
- White/Black color
- Cabinet with high technology steel
- 12V and 24V selectable or COMBO
- Roller type of tray sliding
Model |
H-Drawer |
Color |
White / Black |
Dimensions |
420(W) x 400(D) x 112(H) mm |
Housing |
Top Material |
Steel |
Bottom Material |
Steel |

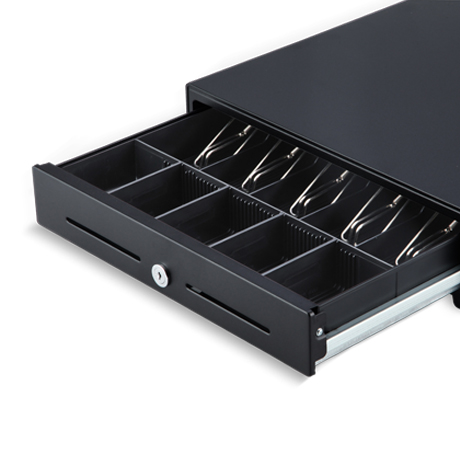

Tray |
Till Material |
Steel |
Sliding Type |
Plastics-Roller |
Media Slot |
2 Slots, Height : 10mm |
Lock Key |
2 Position ¨çOn-Line ¨èClosed |
3 Position (4 Function) Option ¨çOn-Line ¨èClosed ¨éLocked Open ¨êManual Open |
Bill Coin |
Bill Till Size (mm) |
Width |
72 (5B5C) |
Depth |
180 |
Height |
46 |
Coin Till Size (mm) |
Width |
71 (5B5C) |
Depth |
97 (5B5C) |
Height |
48 (5B5C) |
Coin Box Separation |
- |
Coin Partition Separation |
Yes |
Bill Partition Separation |
Yes |
Lever Press |
Standard |
Plastic |
Option |
Steel |
Lock Unit |
Compulsory |
Yes |
Latch |
2 Latch |
Interface |
RJ11 |
Locking Lid |
Yes (Optional) |
Power Input (Solenoid) |
12V/24V |
Life |
1,000,000 Cycle |
Weight |
6.7 Kg |
