- Powerful performance with the latest Intel atom processor
- Compact and stylish design
- High speed of the latest intel Atom CPU
- Built in magnetic stripe reader
- Easy to connect and remove peripherals
MODEL NAME |
SPT-3700 |
SYSTEM |
CPU |
Intel ATOM D2550 1.86GHz + NM10 |
Memory |
DDRIII 2 slots (up to 4GB) |
HDD |
SATA¥± 2.5¡¯¡¯ 1 slots |
LAN |
1 x 10/100/1,000Mbps |
DISPLAY |
LCD |
15¡¯¡¯ TFT LCD, LVDS, 1024x768(XGA) |
Touch |
5 wire Analog Resistive |
INTERFACE |
Serial |
RS-232C x 5 ports (3 x 9P DSUB, 2xRJ-45) (5V/12V BIOS selectable) |
Parallel |
1 port |
USB |
6 ports |
VGA |
1 port |
Drawer |
1 port (12V/24V selectable) |
Audio |
3 port (Line in/Line out/ Mic in) + Internal Speaker (2.0W) |
POWER |
Adapter |
60[W] Adaptor |
Input/ Output |
INPUT AC 100~240V/50~60HZ, OUTPUT DC 12V/5.0A |
OS |
Windows XP, WEPOS, POSReady2009 |
OPTION |
MSR, CFAST Memory slot, Drawer port, Dallas Key, Customer Display (20C2L VFD Dual Display, 7 Inch LCD Dual Display, 15 Inch LCD Dual Display), Wall mount |
Special Options
OS Recovery Solution, Virus Vaccine
Internal MSR

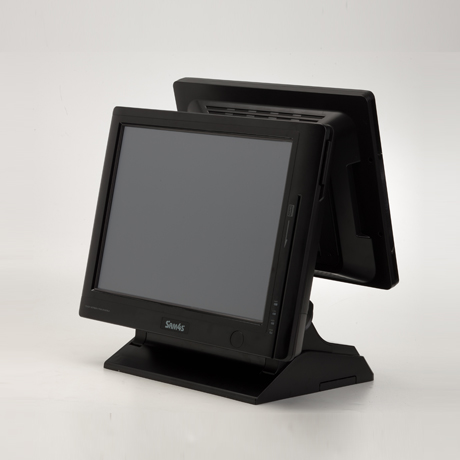

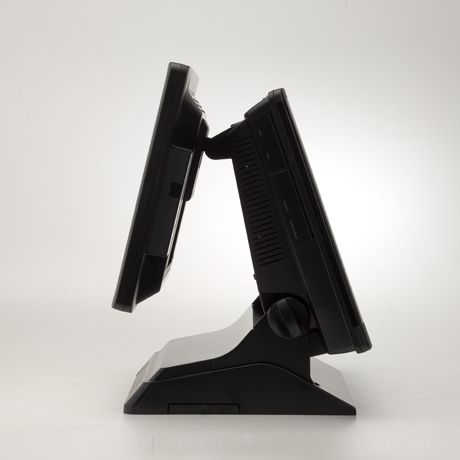

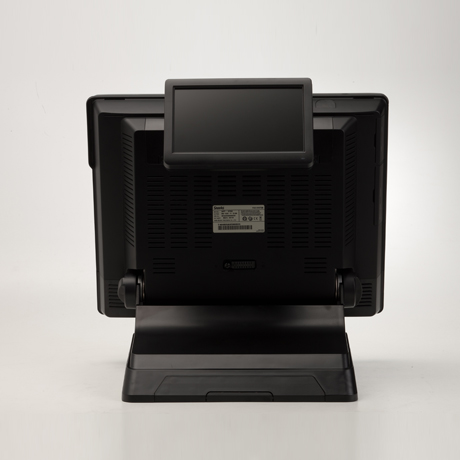

Various Rear Display Options
