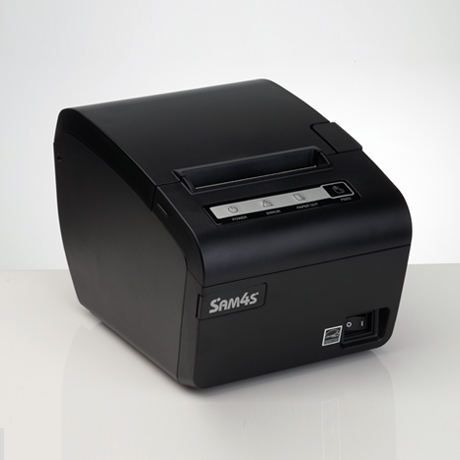

ELLIX40Ⅱ/42
Multi-functional thermal receipt printer

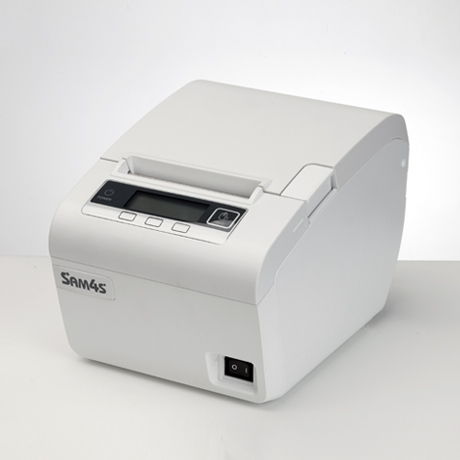

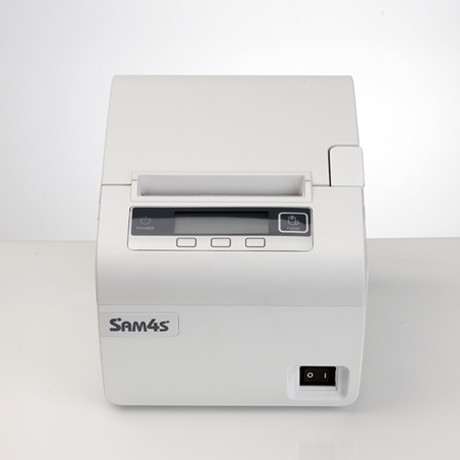

ELLIX40II/42 is a receipt printer with powerful performance and reliable system structure. ELLIX40II/42 is also equipped with unique LCD display providing user friendly function and support.

- Max. 270mm/sec Printing Speed
- Various barcode adoption
- Automatic display pivot function at the wall-mount
- Low power consumption and paper saving
- Support a variety of options and interfaces

Model		ELLIX40Ⅱ	ELLIX42
Printing method		Thermal Line Printing
Resolution		180 dpi	203 dpi
Printing Speed	Mono paper 80mm	Max. 270 mm/sec (63 lines/sec)	Max. 220mm/sec (58 lines/sec)
	Mono Paper 58mm	Max. 150mm/sec (36 lines/sec)
	Two Color Paper	Max. 100mm/sec (24 lines/sec)
Paper	Loading	Drop-In Type
	Width	Max. 80.0mm / 58.0mm
	Diameter	Max. Ø 83.0mm
Memory	PGM Memory	10MByte
	Data Memory	8MByte
	Data Buffer	64KByte
Reliability	Mechanism(MCBF)	70,000,000 Lines
	TPH	1x10^8 Pulse, 150 Km
	Auto Cutter	1,500,000 Cuts
Drawer Port		2 Ports (+24V)
Bar code		UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR code
Driver/Utility		Windows, OPOS, JPOS, CUPS
SDK		iOS, Android

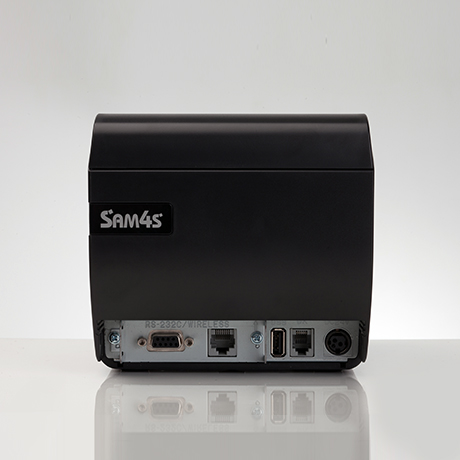

Interface		USB Only USB + Serial(25Pin) USB + Serial(9Pin + RJ45) USB + Parallel USB + Bluetooth USB + Wi-Fi USB + Serial + Ethernet (3-Combo)
Dimension (with Foot Rubber)		144(W) x 195(D) x 137(H) mm
Weight(Net)		2.0 Kg

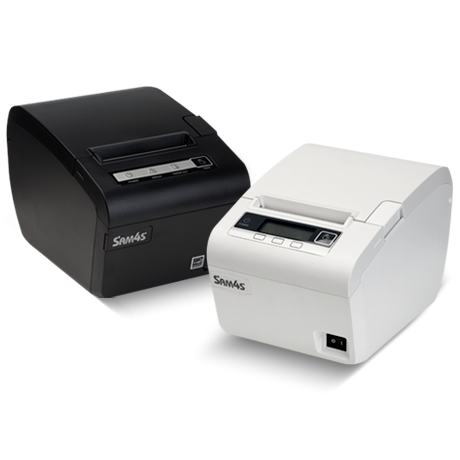

Color		Black, White
Emulation		EPSON, STAR
Options	Paper Near End Sensor	Yes
	Kitchen Bell	Yes
	Wall Mount Kit	Yes
	Splash Cover	Yes
	Paper Separator(58mm)	Yes
Power Supply		DC 24V/2.5A
